Categories | Li-ion Battery |
---|---|
Brand | POEAE |
Model | 7.4v 10Ah lithium ion battery |
Warranty | 1 year |
Maintenance | 10 years |
Main color | Blue |
OEM/ODM | Available |
MOQ | 50pcs |
Payment | T/T, credit card,paypal, others |
Port | Shenzhen, Hongkong |
Packing | Suitable carton packing |
Item Number | POEAE-L-142 |
Product Name | 7.4v 10ah rechargeable li-ion battery for power tools China |
FOB port | Shenzhen, Hongkong, others |
Terms of Payment | L/C, D/A, D/P, Western Union |
Update Time | 2016-11-16 |
High performance 7.4v 10ah blue rechargeable li-ion battery for power tools China
Main parameters of Li-ion battery
1 | Battery cell model | 18650 |
2 | Combination | 2S5P+PCM |
3 | Nominal voltage | 7.4V |
4 | Nominal capacity | 10000mAh |
5 | Standard discharge current | 0.2C |
6 | Max discharge current | 1C |
7 | Standard charge current | 0.2C |
8 | Fast charge current | 0.5C |
9 | Inner resistance | 67mohm |
10 | Over discharge cut off voltage/series | 2.4 ± 0.06V |
11 | Over charge protection voltage/series | 4.25± 0.03V |
12 | Discharge working temperature | -20-60°C |
13 | Charge working temperature | 0-45°C |
14 | Recommended storage temperature | 23 ± 5°C |
15 | Flow value | 20A |
16 | Weight | about 500g |
17 | Size | L*W*H=94*39*69.5mm |

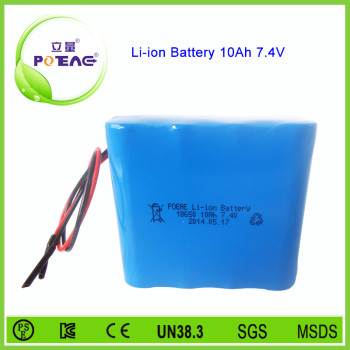

Picture of Li-ion battery
Not clear parts and invisible parts of Li-ion battery
This battery pack including high end battery cells, electric wires and a PCM, connectors can be included if needed, all parameters related are customized according to your request.
Typical application fields of Li-ion battery:Surveillance camera, Louderspeaker, Explosion-proof light
This series of 6.4V&7.4V lithium batteries can be widely used in:
Wireless speakers, POS machines, flashlights, communication equipments, payment terminals, heated clothes,
medical Analytical instruments, medical electric bone drill, engineering test machine, Data receiving apparatus,
portable speaker products, industrial computer, …
certificates of some batteries for reference
We are got ISO9001 certification, some battereis are SGS, CE, PSE, KC, UL, IEC, RoHs and UN38.3 certified, MSDS can be provied if you need. If the battery you asked doesn't has current certification, we could apply for it.
Why choose us?
1 | Have been engaged in custom battery since 2007 |
2 | Provide sample for free if amount less than USD5 |
3 | Never exaggerate battery capacity |
4 | Battery management systems/PCMs are with the same quality as Seiko |
5 | Finished battery safety performance could reach UL, CE, KPS, KC, etc. testing standard |
6 | Got ISO9001-2008 quality system certification |
7 | 5S factory with dust-free workshop |
8 | Process design far exceeds battery industry standard |
9 | 100% quality inspection |
10 | One year warranty, 10 years maintenance |
